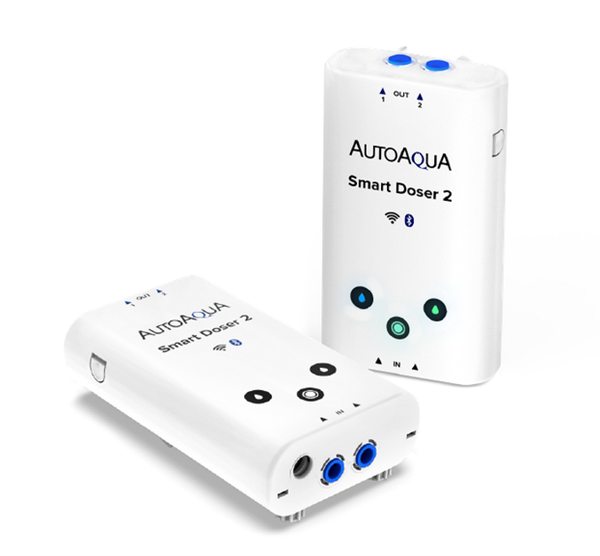

Smart Doser 2 (ASD-200)

Power:

- Input : 100-240 VAC 50-60 Hz

- Output : 12 VDC / 1 A

- Cable Length : 6 feet (180 cm)

Slim Gear Peristaltic Pump:

- Power : 2 W @ 12 VDC

- Suction Head : 20 feet (610 cm)

- Max. Flow : 21 ml/min

- Accuracy : +/- 2%

1/4-inch Flexible Tubing:

- Length : 9.8 feet (300 cm)

- Size : ID 5/32 inch (4 mm), OD 1/4 inch (6.4 mm)

Max. Mounting Thickness:

- Hanging Bracket : 3/4 inch (19 mm)

Dimensions (L x H x W):

- 5.6 inch x 3.2 inch x 1.4 inch (143 mm x 82 mm x 35 mm)
