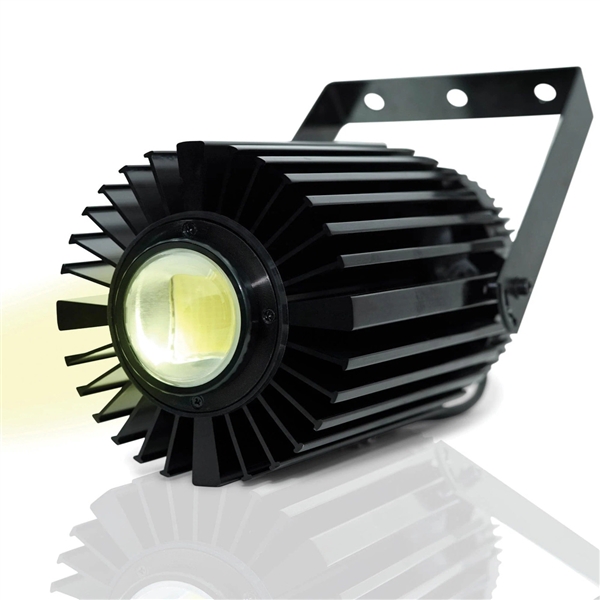

Thermally efficient, the Cannon PRO utilizes a wide channel marine-grade aluminum housing and is very effective at transferring heat without the need for a cooling fan. Powered by a Meanwell HBG driver, the entire light is IP67 rated and ETL approved for wet environments, providing long life in even the harshest environments.

An integrated aluminum swivel bracket delivers light exactly where you want it, providing 360° rotation and 0°- 60° tilt. Glass optical lenses (45°, 60°, 90°, and 120°) deliver light uniformly to a precise target area with an exceptionally high punch rate and optimal spread. Included silicone lens snoot helps prevents any light spillage.

• High-density multi-chip LED provides superior water penetration
• Easy to adjust beam angle and light direction
• Plug-and-play installation, no wiring required
• Modular – use multiple LEDs together, adjust and blend
• Dimmer compatible – 1-10%, PWM, Internal Dial
• ETL Approved for Wet Environments, IP 65 Rated

8,000K + RGB - Applications:
Marine or Freshwater Exhibits requiring simple color and intensity adjustability

Deeper Ocean Exhibits
Shark Exhibits
Touch Tanks
Penguin and Bird Exhibits
Deeper Live Coral Tanks (combine with 460nm Blue or Marine Actinic)

SPECTRUM WAVELENGTH: 8,000K + RGB White
FLUX: 7023 lumens
CRI: 81.1
EFFICACY: 81.2 lm/w
MAX WATTS: 85.5

SPECIFICATIONS

FIXTURE DIMENSIONS

• Total Height: 310/397mm
• Diameter: 160mm
• Weight: 3.17 kg
• Material: Aluminum
• Snoot Length (optional):63.5mm

ELECTRICAL SPECS

• Input Voltage: 90-305VAC
• Output Voltage: 36VDC
• Working Temp: -40 to +60C
• Working Humidity: 20~95% RH
• Driver: Meanwell HBG160 Series (160 watt)
• Protections: Short circuit/ over current / over voltage / over temp
• Built-in PFC Function, high efficiency 93.5%
• Driver Certifications: UL, cUL, CE
• Driver Warranty: 5 years

WHAT'S INCLUDED

Each Cannon Pro LED Pendant is pre-assembled and includes:

• 1 – High-density multichip LED
• 1 – Swivel mounting bracket and mounting hardware
• 1 – Meanwell HBG160 LED driver
• 1 – Threaded eye hook with a safety harness cable
• 3 – Glass optical lenses – 60º, 90º & 120º (90º pre-installed)
• 1 – 2.5” Aluminum light snoot
• 1 - 12ft. 120VAC Power Cord
• Complete Instructions
• ** Models 6870 & 6878 include a built-in controller and wireless remote **(These models are not connectable to an external controller)
