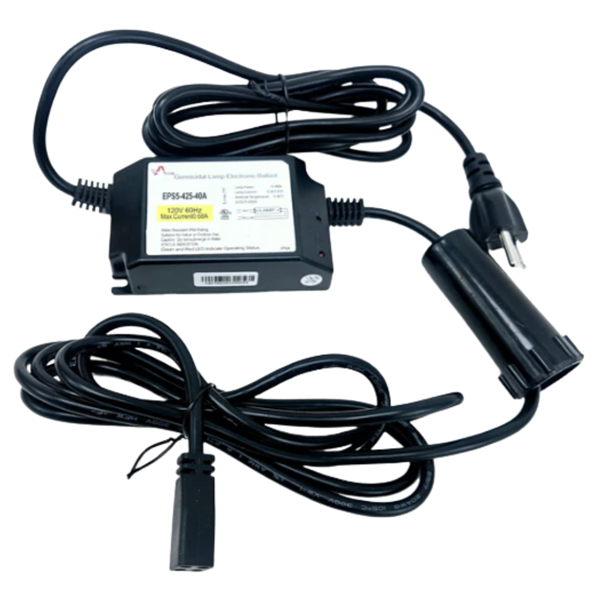

QL-15/25/40 to QL-240 - 15/25/40 AquaStep Pro 15/25Watt ballast

UL Listed

Specifications:

Power output: 15W/25W/ 40W

- Input Voltage: AC from 120V to 277V

- Input Frequency: 50Hz/60Hz

- Power Factor: 0.99

- Harmonic (THD): on or less than 10%

- Crest Factor: 1.7

- Lamp Start Ignition Method: Preheat - Environmental: -18 Degree to +50 Degree

Centigrade

- Sound Rate A

- Protection:

1. a) Deactivate Lamp Protection
2. b) No Lamp Protection
3. c) Short Circuit Protection
4. d) Class P for Heating Protection

- Type 1 Outdoor

- No PCB's

- Input power cord, UL SVT105°C VW- 1,18AWGx3C, 1.75m long

- Output wires, UL SVT105°C VW-1, 22AWGx4C, 2m long

- Connector type: A401C03

Black Splash boot with rubber gasket
